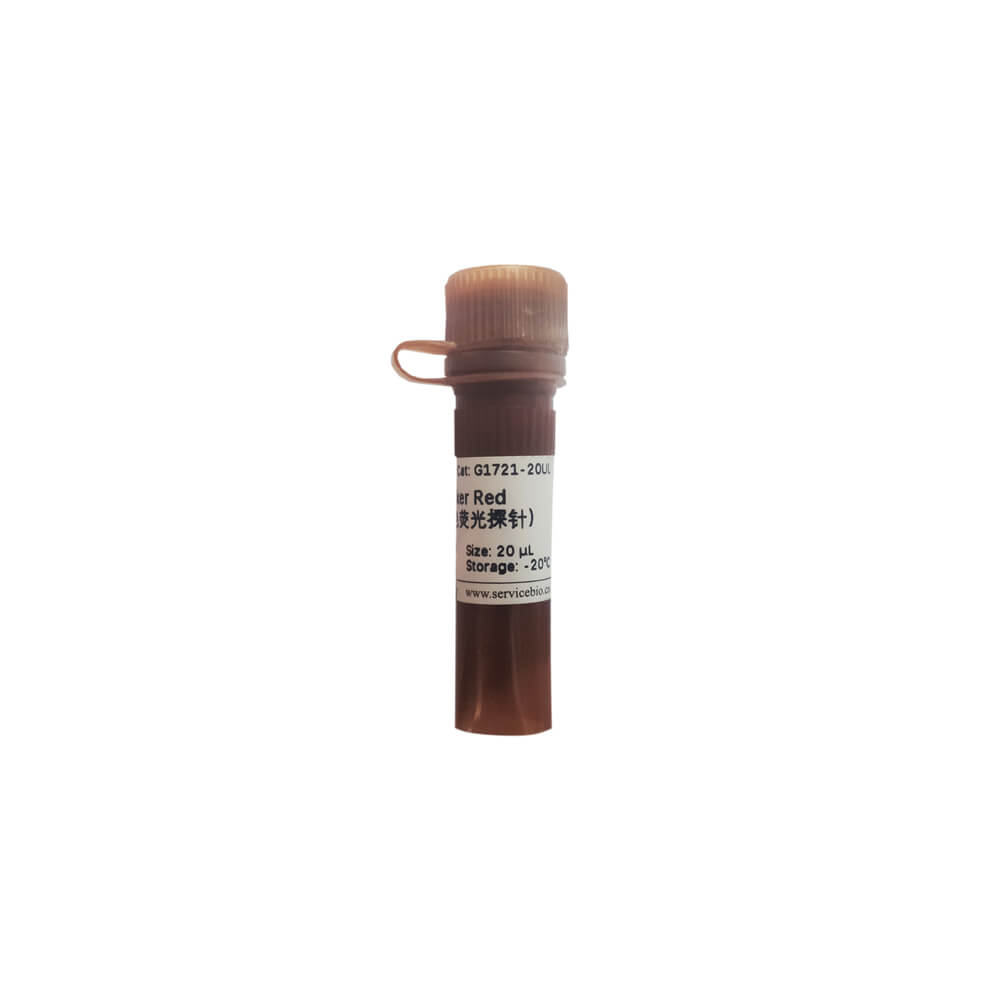

ER-追蹤器紅色(ER-Tracker Red) | SERVICEBIO 貨號G1721-20UL
SERVICEBIO細胞螢光染色(Cell Fluorescence Staining)系列產品-ER-Tracker Red
ER-追蹤器紅色(ER-Tracker Red) | SERVICEBIO 貨號G1721-20UL
產品介紹:
ER-Tracker Red (Endoplasmic Reticulum Red Fluorescent Probe) is a combination of the red fluorescent dye BODIPY FL and Glibenclamide. The glibenclamide group in its chemical structure, originally a type II diabetes treatment drug, binds to the sulfonylurea receptor of ATP-sensitive potassium channels on the endoplasmic reticulum, and thus can be selectively localized to the endoplasmic reticulum and used as an endoplasmic reticulum-specific fluorescent probe for labeling the endoplasmic reticulum of cells.ER tracker red has good specificity, is highly selective for the endoplasmic reticulum of living cells, rarely stains mitochondria, and has low cytotoxicity. This probe can partially retain the staining characteristics of living cells after staining and fixation.
ER-Tracker Red內質網紅色螢光探針(Endoplasmic Reticulum Red Fluorescent Probe)是紅色螢光染料 BODIPY FL (red fluorescent dye BODIPY FL)和格列本脲的組合。化學結構中的格列本脲基團原本是II型糖尿病治療藥物，與內質網ATP敏感鉀通道的磺酰脲類受體結合，因此可以選擇性定位於內質網，用作內質網特異性藥物。用於標記細胞內質網的螢光探針。ER tracker red特異性好，對活細胞內質網選擇性高，很少染色粒線體，細胞毒性低。此探針在染色固定後可部分保留活細胞的染色特性。
| Component | G1721-20UL |
| ER-Tracker Red | 20 μL |
| Manual | 1 pc |
Assay Protocol
1. Assay working solution preparation:
1.1. This product is a 1 mM storage solution that is warmed back to room temperature prior to experimentation and centrifuged briefly at low speed to ensure that the reagents sink to the bottom of the tube;
1.2. It is diluted to 0.25-1 μM working solution for endoplasmic reticulum detection by buffer (Hanks, PBS, etc., Hanks is recommended) or basal medium (without serum);
2. Cell staining (the following protocol is for adherent cells; centrifugation is required for suspension cell exchange)
2.1. Normal or treated cells are washed 1-2 times with buffer for 3-5 min each time;
2.2. Add pre-warmed endoplasmic reticulum assay working solution, and incubate in a cell culture incubator at 37°C for 20 min (the incubation time can be adjusted to some extent due to different cell types and states);
2.3. Remove the endoplasmic reticulum assay working solution and wash with buffer 2-3 times for 3-5 min each;
2.4. Red fluorescence (Ex=587 nm, Em=615 nm) is observed under a fluorescence microscope after blocking the film directly or with an anti-fluorescence bursting agent (recommended G1401);
3. Cell fixation (optional):
Note: After staining, this product can be fixed, but the fluorescent signal will be attenuated after fixation; it cannot be perforated for processing, and perforation will lead to the disappearance of fluorescent labeling.
3.1. The stained and washed treated cells are added to the fixative (recommended G1101) and fixed for 5 min at room temperature;
3.2. Remove the fixative and wash with buffer 2-3 times for 3-5 min each time;
3.3. After washing, the cells can be subsequently blocked, microscopically examined or further stained according to experimental needs.
Fluorescence Microscopy to Observe The Procedure of Living Dead Cells：
1. Due to the different types and states of the cells, the working concentration of the dye, and the incubation time, can be adjusted appropriately.
2. The probe could not be perforated for treatment after staining, and cell fluorescence disappeared almost completely after perforation.
3. The pharmacologic properties of glibenclamide may affect certain functions of the endoplasmic reticulum; variable expression of sulfonylurea receptors in some specialized cells may also result in non-endoplasmic reticulum-specific staining.
4. When staining and washing live cells, the assay working solution and washing buffer need to be pre-warmed at 37°C. Staining and washing are accomplished by incubation in an incubator so as not to affect the morphology of the cells by temperature difference stimulation.
5. In order to prevent fluorescence quenching, the entire staining process needs to be operated away from light.
6. Probe master mixes should be stored in separate containers to avoid repeated freezing and thawing.To avoid waste, the staining solution is prepared as needed.
7. For your health and safety, please wear lab coat and gloves during operation.
流式細胞儀偵測細胞週期程序：
1. 測定工作液的配製：
1.1.本品為1 mM儲存液，實驗前回溫至室溫，並以低速短暫離心，確保試劑沉至管底；
1.2.以緩衝液（Hanks、PBS等，建議使用Hanks）或基礎培養基（不含血清）稀釋成0.25-1μM內質網檢測工作液；
2. 細胞染色（以下方案適用於貼壁細胞；懸浮細胞交換需離心）
2.1.正常或處理細胞用緩衝液洗滌1-2次，每次3-5分鐘；
2.2.加入預熱的內質網檢測工作液，在細胞培養箱中37℃孵育20分鐘（孵育時間可因細胞類型和狀態不同而有所調整）；
2.3.除去內質網測定工作液，以緩衝液洗滌2-3次，每次3-5分鐘；
2.4.直接或用抗螢光爆裂劑（建議G1401）封閉膜後，在螢光顯微鏡下觀察到綠色螢光（Ex=504 nm，Em=511 nm）；
3. 細胞固定（可選）：
注意：本品染色後可進行固定，但固定後螢光訊號會減弱；不能穿孔加工，穿孔會導致螢光標記消失。
3.1.將染色、洗滌處理後的細胞加入固定液（建議G1101）中，室溫固定5min；
3.2.除去固定液，用緩衝液洗滌2-3次，每次3-5分鐘；
3.3.洗滌後，可依實驗需求對細胞進行封閉、顯微鏡檢查或進一步染色。
螢光顯微鏡觀察活死細胞的過程：
1. 由於細胞類型和狀態不同，染料的工作濃度和培養時間可適當調整。
2.染色後探針無法穿孔處理，穿孔後細胞螢光幾乎完全消失。
3. 格列本脲的藥理特性可能影響內質網的某些功能；某些特殊細胞中磺酰脲受體的可變表達也可能導致非內質網特異性染色。
4. 活細胞染色和洗滌時，測定工作液和洗滌緩衝液需預熱至37°C。染色和洗滌是透過在培養箱中孵育來完成，以免溫差刺激影響細胞的形態。
5.為了防止螢光猝滅，整個染色過程需要避光操作。
6. 探針預混液應分開存放，避免反覆凍融，染色液按需配製，避免浪費。
7.為了您的健康與安全，操作時請穿戴實驗服和手套。
|
Cat.No.
|
Product Name
|
Spec.
|
|---|
|
G1011-10ML
|
Hoechst 33258 Staining Solution (Ready-To-Use)
Hoechst 33258 染色液（即用型） |
10 mL
|
|
G1012-100ML
|
DAPI Staining Reagent (Ready to Use)
DAPI 染色試劑（即使用型） |
100 mL
|
|
G1012-10ML
|
DAPI Staining Reagent (Ready to Use)
DAPI 染色試劑（即使用型） |
10 mL
|
|
G1021-10ML
|
PI Stain
碘化丙啶(propidium iodide, PI) |
10 mL
|
|
G1127-1ML
|
Hoechst 33342 Staining Solution
Hoechst 33342 染色液 |
1 mL
|
|
G1515-100T
|
JC-1 Mitochondrial Membrane Potential Assay Kit
JC-1 粒線體膜電位檢測試劑盒 |
100 T
|
|
G1704
|
DiO Cell Membrane Green Fluorescence Staining Kit
DiO 細胞膜綠色螢光染色試劑盒 |
100-1000 T
|
|
G1705
|
Dil Cell Membrane Red Fluorescence Staining Kit
Dil 細胞膜紅色螢光染色試劑盒 |
100-1000 T
|
|

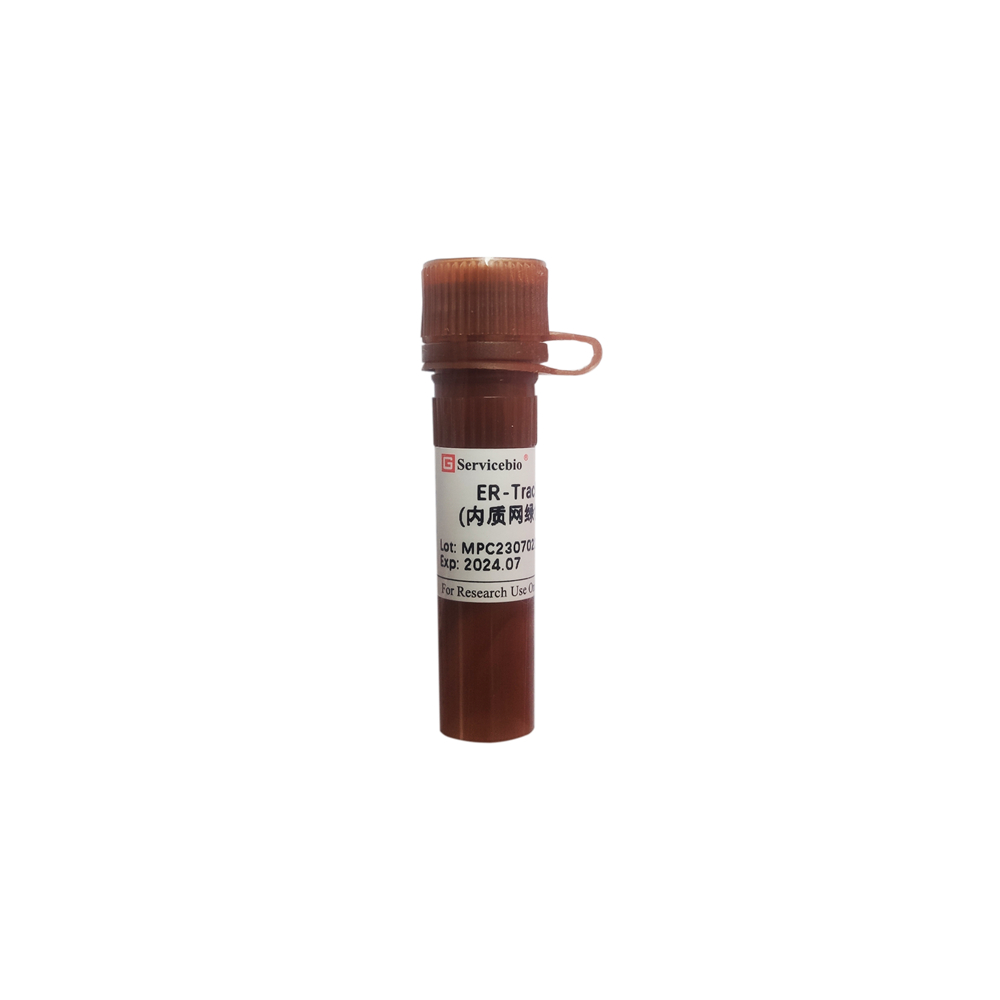

G1720-20UL
|
