Dil 細胞膜紅色螢光染色試劑盒(Dil Cell Membrane Red Fluorescence Staining Kit) | SERVICEBIO 貨號G1705
SERVICEBIO細胞螢光染色(Cell Fluorescence Staining)系列產品-Dil 細胞膜紅色螢光染色試劑盒(Dil Cell Membrane Red Fluorescence Staining Kit)
Dil 細胞膜紅色螢光染色試劑盒(Dil Cell Membrane Red Fluorescence Staining Kit) | SERVICEBIO 貨號G1705
產品介紹:
DiI又稱DiIC18(3),1,1′-二八基-3,3′,3′-四甲基吲哚羰基花青高氯酸鹽(1,1′-dioctagyl-3,3′,3′-tetramethyl indole carbonyl cyanine perchlorate),分子量(molecular weight )933.87,是一種具有親脂性的長鏈二烷基碳花青染料螢光染料(dialkyl carbocyanine dye fluorescent dye)。通常用於標記細胞膜(cell membranes)和其他脂溶性(lipid-soluble )生物結構。進入細胞膜(cell membrane)後,Dil 可以橫向擴散並逐漸染色整個細胞膜(cell membrane)。 Dil的螢光在進入細胞膜之前非常弱,但與細胞結合後,螢光強度會大大增強。 Dil被激發後可發出橘紅色螢光,可用標準FITC濾光片檢測到。 Dil的最大激發波長為550nm,最大發射波長為564nm。根據Dil的特性,它既可用於活細胞染色,也可用於固定細胞或組織的染色。另外,Dil探針一般不會影響細胞的活力,因此正向或反向標記的細胞或某些物質(外泌體)可以作為示蹤劑檢測。
本產品Dil細胞膜綠色螢光染色試劑盒含有Dil螢光探針和優化的染色緩衝液,可使細胞膜染色更快,螢光更亮更穩定,效果更好。

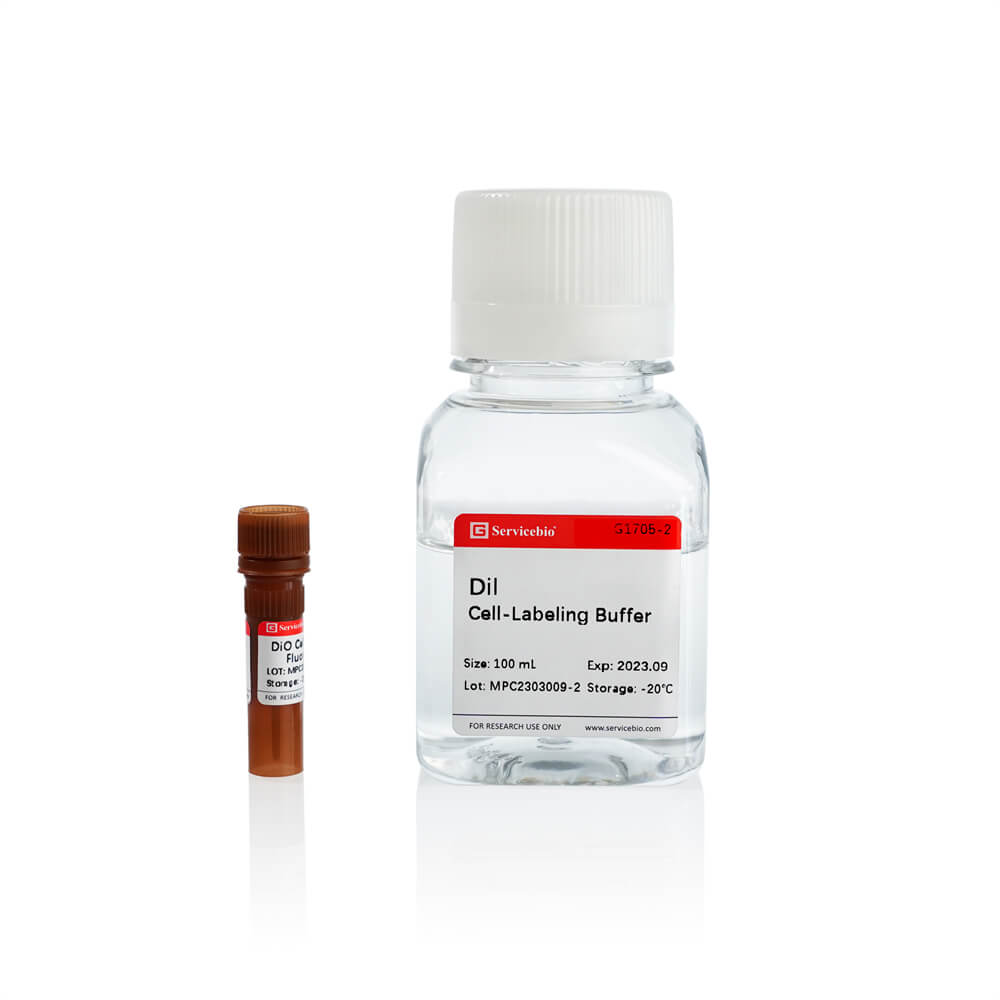

Component Number | Component | G1704 |
G1705-1 | Dil Cell Membrane Red Fluorescent Probe | 100μL |
G1705-2 | Staining Buffer | 100mL |
Manuals | One copy |
Assay Protocol
1. Preparation of Dil staining working solution:
1.1. Dil staining working solution (prepared when using) was prepared by mixing and diluting Dil cell membrane Red fluorescent probe with staining buffer at a ratio of 1:1000; Note that the Dil probe dilution ratio can be adjusted from 1:500 to 1:2000 according to the specific situation to obtain the best staining effect.
2. Staining of suspension of live cell:
2.1. The suspended cells were collected and centrifuged at 500-1000 g at room temperature for 3-5 min to remove the cell supernatant;
2.2. Cells were resuspended with Dil staining working solution to make the cell density at 1-2×106 cells /mL;
2.3. Incubate at 37℃ for 5-20 min in the dark; It is recommended to adjust the staining time according to the specific cells to obtain the best staining effect.
2.4. At the end of incubation, centrifuge 500-1000 g at room temperature for 3-5 min to aspirate Dil staining working solution;
2.5. Resuspended cells with 37℃ preheated PBS or cell medium, centrifuged at 500-1000 g for 3-5 min, and removed supernatant;
2.6. Repeat Step 2.5 once;
2.7. The cells were detected by flow cytometry, or transferred to porous plates, cell culture dishes or slides, and observed under fluorescence microscopy. The maximum excitation wavelength of Dil is 550nm, and the maximum emission wavelength is 564nm.
3. Staining of adherent live cells (6-well plate as an example):
3.1. The cells were planted in 6-well plates at a certain density in advance;
3.2. The cell medium was removed by aspiration, and the cells were washed twice with PBS (G4202). 1 mL Dil staining working solution was added (well plates with other specifications were adjusted according to the situation to ensure dye coverage of cells);
3.3. Incubate at 37℃ for 5-20 min in the dark, and remove Dil staining working solution by suction. It is suggested to adjust the staining time according to the specific cells to obtain the best staining effect.
3.4. Wash the cells 1-2 times with 37℃ preheated PBS or cell medium;
3.5. Add PBS preheated at 37℃ or cell medium and observe under fluorescence microscope. The maximum excitation wavelength of Dil is 550nm, and the maximum emission wavelength is 564nm.
4. Staining of fixed adherent cells or sections:
4.1. Sample pretreatment:
For cells: Remove the cell medium and wash 1-2 times with PBS. 4% paraformaldehyde fixing solution (G1101) was added and fixed for 10 min at room temperature. Remove fixation solution by suction and wash with PBS 2-3 times.
For tissue sections: paraffin sections are dewaxed; Frozen sections were rewarmed and washed with water.
4.2. Cells or sections were treated by adding 0.1-0.5% Triton-100 (prepared with PBS) and permeated for 10 min at room temperature; The permeable liquid was removed and washed with PBS 2-3 times;
4.3. (Optional, immunofluorescent labeling) Incubation of antibodies or staining with other dyes according to immunofluorescent staining method. Note: In the process of antibody incubation, the blocking solution, antibody diluent, washing solution and so on should not contain scaling agent.
4.4. Add an appropriate volume of Dil staining working solution to cover cells or tissues, incubate at 37°C for 5-20 min in the dark, and remove Dil staining working solution. It is recommended to adjust the staining time according to the specific cell or tissue samples to obtain the best staining effect.
4.5. Cells or sections were washed with PBS for 2-3 times and then placed under a fluorescence microscope (cells should be covered with appropriate amount of PBS). The maximum excitation wavelength of Dil is 550nm, and the maximum emission wavelength is 564nm.
5. Fluorescent labeling of exosomes:
5.1. The extracted exosomes were precipitated and resuspended with an appropriate amount of Dil staining working solution;
5.2. Incubate the sample at 37℃ for 30 min in the dark;
5.3. Dilute the sample volume with 10 times the volume of PBS (optional);
5.4. Exosomes were extracted again according to the previous extraction protocol to remove excess dyes;
5.5. The collected exosomes were precipitated and resuspended in PBS to obtain DIl-labeled exosomes. It can be used for subsequent experiments, such as cellular uptake.
Fluorescence Microscopy to Observe The Procedure of Living Dead Cells:
1. All fluorescent dyes have quenching problems, please pay attention to avoid light to slow down fluorescence quenching.
2. Due to the lipophilic characteristics of the probe, please avoid using reagents containing glycerol or other organic matter during the experiment, otherwise the staining effect will be affected.
3. When fixing operation is required, the sample should be fixed in 4% paraformaldehyde, because other inappropriate fixing solutions will lead to high fluorescence background.
4. The optimum dilution ratio and incubation time of the probe should be adjusted according to the actual situation due to the different sensitivity between cells and experimental purposes.
5. For your health and safety, please wear laboratory coat and gloves when operating.
流式細胞儀偵測細胞週期程序:
1.Dil染色工作液的配製:
1.1. Dil染色工作液(使用時配製)將Dil細胞膜紅色螢光探針與染色緩衝液以1:1000的比例混合稀釋而成;注意,Dil探針稀釋比例可依具體情況在1:500至1:2000之間調整,以獲得最佳染色效果。
2.活細胞懸浮液染色:
2.1.收集懸浮細胞,室溫500-1000g離心3-5min,除去細胞上清;
2.2.以Dil染色工作液重懸細胞,使細胞密度為1-2×106個/mL;
2.3. 37℃避光孵育5-20分鐘;建議根據特定細胞調整染色時間,以獲得最佳染色效果。
2.4.孵育結束,室溫500-1000 g離心3-5 min,吸去Dil染色工作液;
2.5.以37℃預熱的PBS或細胞培養基重懸細胞,500-1000 g離心3-5 min,去除上清;
2.6。重複步驟2.5一次;
2.7.透過流式細胞儀檢測細胞,或轉移至多孔板、細胞培養皿或玻片上,並在螢光顯微鏡下觀察。 Dil的最大激發波長為550nm,最大發射波長為564nm。
3.貼壁活細胞染色(以6孔板為例):
3.1.將細胞預先以一定密度種植於6孔板中;
3.2.透過抽吸除去細胞培養基,並以PBS (G4202)洗滌細胞兩次。加入1 mL Dil染色工作液(其他規格孔板依情況調整,確保染料覆蓋細胞);
3.3. 37℃避光孵育5-20 min,吸去Dil染色工作液。建議根據特定細胞調整染色時間,以獲得最佳染色效果。
3.4.以37℃預熱的PBS或細胞培養基洗滌細胞1-2次;
3.5.加入37℃預熱的PBS或細胞培養基,在螢光顯微鏡下觀察。 Dil的最大激發波長為550nm,最大發射波長為564nm。
4.固定貼壁細胞或切片的染色:
4.1.樣品預處理:
細胞:移除細胞培養基並以 PBS 洗滌 1-2 次。加入4%多聚甲醛固定液(G1101),室溫固定10分鐘。吸除固定液,用 PBS 清洗 2-3 次。
對於組織切片:石蠟切片脫蠟;將冰凍切片重新加熱並用水洗滌。
4.2.細胞或切片加入0.1-0.5% Triton-100(PBS配製)處理,室溫滲透10 min;除去滲透液,用PBS洗滌2-3次;
4.3. (可選,免疫螢光標記)根據免疫螢光染色方法孵育抗體或用其他染料染色。注意:抗體孵育過程中,封閉液、抗體稀釋液、洗滌液等不得含有結垢劑。
4.4.加入適量的Dil染色工作液覆蓋細胞或組織,37℃避光孵育5-20分鐘,除去Dil染色工作液。建議根據特定細胞或組織樣本調整染色時間,以獲得最佳染色效果。
4.5.細胞或切片以PBS洗滌2-3次,然後置於螢光顯微鏡下(細胞應覆蓋適量的PBS)。 Dil的最大激發波長為550nm,最大發射波長為564nm。
5.外泌體的螢光標記:
5.1.萃取的外泌體以適量Dil染色工作液沉澱重懸;
5.2. 37℃避光孵育樣品30分鐘;
5.3.以10倍體積的PBS(可選)稀釋樣品體積;
5.4.依照先前的萃取方案再次萃取外泌體,去除多餘的染料;
5.5.將收集的外泌體沉澱並重懸於PBS中以獲得DI1標記的外泌體。可用於後續實驗,例如細胞攝取。
螢光顯微鏡觀察活死細胞的過程:
1.所有螢光染料都有猝滅問題,請注意避光以減緩螢光猝滅。
2. 由於探針的親脂特性,實驗過程中請避免使用含有甘油或其他有機物的試劑,否則會影響染色效果。
3. 需要固定操作時,樣本應在4%多聚甲醛中固定,因為其他不合適的固定液會導致螢光背景過高。
4.由於細胞之間的靈敏度和實驗目的不同,探針的最佳稀釋比例和孵育時間應根據實際情況進行調整。
5.為了您的健康與安全,操作時請穿戴實驗服和手套。
