Discovery: Detect between 7-274 targets per sample in over 10 different species.
Easy-to-use: Membranes with pre-bound antibody spots giving multiplex results in 24 hours using Western blotting equipment!
Sensitive: Detect up to 4 orders of magnitude and as little as 1pg/ml for some proteins.
EGFR磷酸化抗體矩陣 | Assaygenie Human EGFR Phosphorylation Array (16 targets) (SARB0062)
| 代理廠牌： |  |
| 原廠連結： | |
| 相關下載： |
特點
EGFR磷酸化抗體矩陣 | Assaygenie Human EGFR Phosphorylation Array (16 targets) (SARB0062)

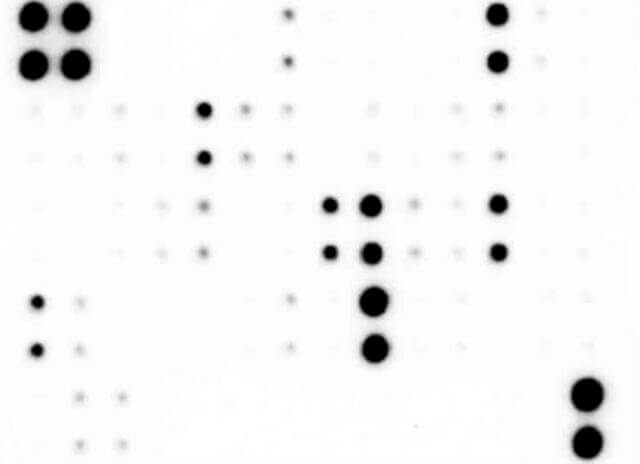

Human EGFR Phosphorylation Array (16 targets) (SARB0062)
Assay Genie Antibody 膜陣列(Antibody Membrane Arrays)是多重陣列(multiplex arrays)，可測量樣品中 7 和 274 種蛋白質的相對水平，非常適合生物標誌物(biomarker)發現和驗證研究(validation studies)。半定量抗體膜陣列(semi-quantitative antibody membrane arrays)可用於 15 個以上疾病領域的 10 個物種。該技術使用夾心免疫測定原理，使用與蛋白質印跡相同的設備即可輕鬆讀取，因此無需昂貴的儀器。Assaygenie提供一系列抗體矩陣(Antibody Array )產品, 抗體矩陣(Antibody Array )基於 ELISA 的高通量平台，EGFR磷酸化抗體矩陣 | Assaygenie Human EGFR Phosphorylation Array (16 targets) (SARB0062)，同時檢測樣本內多個Biomarker的含量 (16種相關蛋⽩) AKT1, CREB1, GSK3A, GSK3B, HSPB1, MAP2K1, MAP2K3, MAP2K6, MAPK1, MAPK14|MAPK8, MTOR, RPS6KA1, RPS6KA3, RPS6KA4, RPS6KB1, TP53。用於在細胞、組織、血清甚至培養基中進行有效的蛋白質表達譜分析。與蛋白質印跡法(Western Blots)或傳統 ELISA 等傳統方法相比，抗體陣列檢測的生產效率和成本效益要高得多。步驟簡單，使用方便，無需專用設備。
Multiplexed Protein Detection; Detection of Relative Protein Expression; Detecting Patterns of Cytokine Expression; Biomarker/ Key Factor Screening; Identifying Key Factors; Confirming a Biological Process
Reproducible: Inter-array Coefficient of Variation (CV) is as low as 5%.
Validation: Validate your array hits using our PharmaGenie ELISA designed with the same antibody pairs as the membrane arrays.
Compatible: Antibody Arrays are compatible with any chemiluminescent imaging system.
- Easy to use
- No specialized equipment needed
- Compatible with nearly any liquid sample
- Proven technology
- Highly sensitive (pg/ml)
- Sandwich ELISA specificity
- Higher density than ELISA, Western blot or bead-based multiplex
| Product Sku: | SARB0062 |
| Size: | 2, 4, or 8 |
| Species Detected: | Human |
| Number of Targets Detected: | 16 |
| Gene Symbols: | EGFR, ERBB2, ERBB3, ERBB4 |
| Compatible Sample Types: | Cell Culture Supernatants, Cell Lysates, Plasma, Serum, Tissue Lysates |
| Design Principle: | Sandwich-based |
| Method of Detection: | Chemiluminescence |
| Pathway: | HER/ErbB Signaling |
| Quantitative/Semi-Quantitative: | Semi-Quantitative |
| Solid Support: | Membrane |
| Suggested Application(s): | Multiplexed Protein Detection; Detection of Relative Protein Expression; Detecting Patterns of Cytokine Expression; Biomarker/ Key Factor Screening; Identifying Key Factors; Confirming a Biological Process |
| Storage/Stability: | For best results, store the entire kit frozen at -20°C upon arrival. Stored frozen, the kit will be stable for at least 6 months which is the duration of the product warranty period. Once thawed, store array membranes and 1X Blocking Buffer at -20°C and all other reagents undiluted at 4°C for no more than 3 months. |
| Hover over target for more information | ||||
| EGFR (P-Tyr845) | EGFR (P-Tyr992) | EGFR (P-Tyr1045) | EGFR (P-Tyr1068) | EGFR (P-Tyr1086) |
| EGFR (P-Tyr1148) | EGFR (P-Tyr1173) | EGFR (P-Ser1046/1047) | ErbB2 (P-Tyr877) | ErbB2 (P-Tyr1112) |
| ErbB2 (P-Tyr 1221/1222) | ErbB2 (P-Tyr1248) | ErbB2 (P-Thr686) | ErbB2 (P-Ser1113) | ErbB3 (P-Tyr1289) |
ErbB4 (P-Tyr1284)
|
||||
- Human EGFR Phosphorylation Antibody Array C1 Membranes
- Blocking Buffer
- Wash Buffer 1
- Wash Buffer 2
- Biotinylated Detection Antibody Cocktail
- Streptavidin-Conjugated HRP
- Detection Buffer C
- Detection Buffer D
- Lysis Buffer
- Protease Inhibitor Cocktail
- Phosphatase Inhibitor Cocktail Set I
- Phosphatase Inhibitor Cocktail II
- 8-Well Incubation Tray
- Plastic Sheets
- Array Templates
| Product Name | No. Targets Per Sample | Analytes |
|
18 |
AKT1, AKT1S1, BAD, CDKN1B, EIF4EBP1, GSK3A, GSK3B, MAPK1, MAPK3, MTOR|PDK1, PRKAA1, PTEN, RAF1, RPS6, RPS6KA1, RPS6KA3, RPS6KB1, TP53 |
|
|
9 |
EIF4E, FOXO3, IGF1R, INPP5D, INS, IRS1, PTPN11, SHC1, STK11 |
|
|
17 |
AKT1, CREB1, GSK3A, GSK3B, HSPB1, MAP2K1, MAP2K3, MAP2K6, MAPK1, MAPK14|MAPK8, MTOR, RPS6KA1, RPS6KA3, RPS6KA4, RPS6KB1, TP53 |
|
|
12 |
EGFR, JAK1, JAK2, PTPN11, PTPN6, SRC, STAT1, STAT2, STAT3, STAT5A|STAT6, TYK2 |
|
|
11 |
ATM, EIF2S1, HDAC2, HDAC4, MAP3K7, NFKBIA, RELA, RPS6KA5, STAT1, TBK1|ZAP70 |
|
|
16 |
EGFR, ERBB2, ERBB3, ERBB4 |
|
|
55 |
AKT1, AKT1S1, AMPK1, AND, ATF2, ATM, BAD, CDKN1B, CREB1, EGFR|EIF2S1, EIF4EBP1, FOS, GSK3A, GSK3B, HDAC2, HDAC4, HSPB1, JAK1, JAK2, JUN, MAP2K1, MAP2K3, MAP2K6, MAP3K7, MAPK14, MAPK8, MTOR, NFKBIA, PDPK1, PTEN, PTPN11, PTPN6, RAF1, RELA, RPS6, RPS6KA1, RPS6KA3, RPS6KA4, RPS6KA5, RPS6KB1, SMAD1, SMAD2, SMAD4, SMAD5, SRC, STAT1, STAT2, STAT3, STAT5A, STAT6, TBK1, TP53, TYK2, ZAP70 |
|
|
71 |
ABL1, AXL, BLK, BMX, BTK, CSF1R, CSK, DDR2, EGFR, EPHA1|EPHA2, EPHA3, EPHA4, EPHA5, EPHA6, EPHA7, EPHA8, EPHB1, EPHB2, EPHB3, EPHB4, EPHB6, ERBB2, ERBB3, ERBB4, FER, FGFR1, FGFR2, FGR, FLT4, FRK, FYN, HCK, IGF1R, INSR, ITK, JAK1, JAK2, JAK3, KDR, KIT, LCK, LTK, LYN, MATK, MET, MUSK, NGFR, NTRK2, PDGFRA, PDGFRB, PTK2, PTK2B, RET, ROR1, ROR2, ROS1, RYK, SLPI, SRMS, SYK, TEC, TEK, TIE1, TNK1, TNK2, TXK, TYK2, TYRO3, ZAP70 |
|
|
8 |
ATF2, FOS, JUN, MAP3K7, SMAD1, SMAD2, SMAD4, SMAD5 |
| Product Name | No. Targets Per Sample | Analytes |
| Human Cancer Discovery Array | 30 | AFP, B2M, CA (19-9), CCL5, CEACAM5, CGA, CRP, CXCL8, DKK1, ENO2|ERBB2, FGF2, FSHB, FTH1, GDF15, HGF, ICAM1, KITLG, KLK3, LGALS3, MIF, MMP2, MUC16, PRAP1, SERPINE1, SPP1, TGFB1, THBS1, TIMP1, TNFRSF11B, VEGFA |
| Human Cancer Discovery Array | 20 | AFP, B2M, CA (19-9), CCL5, CEACAM5, CRP, CXCL8, DKK1, FTH1, GDF15|HGF, ICAM1, KLK3, LGALS3, MMP2, MUC16, SERPINE1, SPP1, TIMP1, VEGFA |
| Human Cancer Discovery Array | 10 | AFP, CA (19-9), CEACAM5, GDF15, HGF, KLK3, MUC16, SPP1, TIMP1, VEGFA |
| Product Name | No. Targets Per Sample | Analytes |
| Human Chemokine Array | 38 | CCL1, CCL11, CCL13, CCL15, CCL16, CCL17, CCL18, CCL19, CCL2, CCL20|CCL22, CCL23, CCL24, CCL25, CCL26, CCL27, CCL28, CCL3, CCL4, CCL5, CCL7, CCL8, CX3CL1, CXCL1, CXCL10, CXCL11, CXCL12, CXCL13, CXCL16, CXCL2, CXCL3, CXCL5, CXCL6, CXCL8, CXCL9, PPBP, XCL1 |
| Mouse Chemokine Array | 25 | CCL1, CCL11, CCL12, CCL17, CCL19, CCL2, CCL20, CCL21, CCL22, CCL24|CCL25, CCL27, CCL3, CCL5, CCL9, CX3CL1, CXCL1, CXCL11, CXCL12, CXCL13, CXCL16, CXCL2, CXCL5, CXCL9, PF4 |
| Rat Chemokine Array | 15 | CCL11, CCL2, CCL20, CCL27, CCL3, CCL4, CX3CL1, CXCL1, CXCL2, CXCL3|CXCL5, CXCL9, IL1A, PPBP, TNF |
| Porcine Chemokine Array | 12 | CCL4, CCL5, CXCL9, IFN-BETA, IFNB, IFNB1, IFNG, IL1A, IL1B, INTERFERON-BETA-1|INTERFERON-BETA/POIFN-BETA, MIF, MIP1B, SCY4A, SCYA5, TNF, TNFA, TNFSF2 |
| Bovine Chemokine Array | 9 | CCL2, CXCL8, CXCL9, IFNG, IL1A, IL1B, TNF |
| Canine Chemokine Array | 9 | CCL2, CCL4, CXCL1, CXCL8, IFNG, IL1B, TNF |
| Product Name | No. Targets Per Sample | Analytes |
| Human Cytokine Array | 120 | ADIPOQ, AGRP, ANG, ANGPT2, AREG, AXL, BDNF, BMP4, BMP6, BTC|CCL1, CCL11, CCL13, CCL15, CCL16, CCL17, CCL18, CCL19, CCL2, CCL20, CCL22, CCL23, CCL24, CCL25, CCL26, CCL27, CCL28, CCL3, CCL4, CCL5, CCL7, CCL8, CNTF, CSF1, CSF2, CSF3, CX3CL1, CXCL1, CXCL11, CXCL12, CXCL13, CXCL2, CXCL3, CXCL5, CXCL6, CXCL8, CXCL9, EGF, EGFR, FAS, FGF2, FGF4, FGF6, FGF7, FGF9, FIGF, FLT3LG, GDNF, HGF, ICAM1, ICAM3, IFNG, IGF1, IGF1R, IGFBP1, IGFBP2, IGFBP3, IGFBP4, IGFBP6, IL10, IL11, IL12A, IL12B, IL13, IL15, IL16, IL17A, IL1A, IL1B, IL1R1, IL1RL1, IL1RN, IL2, IL2RA, IL3, IL4, IL5, IL6, IL6R, IL6ST, IL7, KITLG, LEP, LTA, MIF, MST1, NGF, NTF3, NTF4, OSM, PDGFB, PGF, PLAUR, PPBP, TGFB1, TGFB3, THPO, TIMP1, TIMP2, TNF, TNFRSF10C, TNFRSF10D, TNFRSF11B, TNFRSF18, TNFRSF1A, TNFRSF1B, TNFSF14, TNFSF18, TPO, TYRO3, VEGFA, XCL1 |
| Human Cytokine Array | 49 | ACE2, AFP, ANGPT1, ANGPTL4, B2M, CA (19-9), CA9, CALCA, CCL14, CCL21|CD40LG, CDH1, CEACAM1, CEACAM5, CGA, CGB, CRP, CTSS, DCN, DKK1, DKK3, DKK4, DPP4, EDA, EPCAM, EPOR, ERBB2, FCER2, FSHB, HBEGF, IL13RA1, IL17B, IL17C, IL17F, IL17RA, KLK3, MUC1, MUC16, PARN, PLG, PROK1, RPS27A, S100B, SHH, TDGF1, TG, TGFBI, TNFRSF14, TNFRSF17, TNFRSF9, TNFSF9 |
| Human Cytokine Array | 40 | ADAM9, BMP2, C5, CD200, CD244, CD97, CTSL, FABP2, FAP, FGF19|FRZB, GDF2, GPNMB, IFNAR2, IGF2R, IL1RL2, IL24, IL33, KLK14, LGALS3, LGMN, MBL2, MET, MME, NOTCH1, NOV, OLR1, PDCD1, PGLYRP1, RARRES2, SERPINA4, TF, THBD, TLR2, TNFRSF6B, TNFSF13, WIF1 |
| Human Cytokine Array | 23 | CCL2, CCL5, CCL7, CCL8, CSF2, CSF3, CXCL1, CXCL8, CXCL9, IFNG|IL10, IL13, IL15, IL1A, IL2, IL3, IL5, IL6, IL7, LTA, TGFB1, TNF |
| Human Cytokine Array | 32 | AHSG, ALB, AMICA1, ANGPT4, CD163, CLU, CRTAM, CSF3R, CST3, CXCL14|DLL1, FGF1, FOLR1, GPRASP1, GPRASP2, IL17RB, IL27, LAG3, LDLR, PGA3, PGA4, PGA5, PRAP1, RBP4, SDC1, SOST, SPINT2, TFPI, THBS1, TNFRSF13B, TNFSF11, TNFSF13B, TNNI2, WISP1 |
| Human Cytokine Array | 174 | ADIPOQ, AGRP, ALCAM, ANG, ANGPT2, AREG, AXL, BDNF, BMP4, BMP5|BMP6, BMP7, BTC, CCL1, CCL11, CCL13, CCL15, CCL16, CCL17, CCL18, CCL19, CCL2, CCL20, CCL22, CCL23, CCL24, CCL25, CCL26, CCL27, CCL28, CCL3, CCL4, CCL5, CCL7, CCL8, CD14, CD80, CDH5, CNTF, CSF1, CSF1R, CSF2, CSF3, CTF1, CX3CL1, CXCL1, CXCL10, CXCL11, CXCL12, CXCL13, CXCL16, CXCL2, CXCL3, CXCL5, CXCL6, CXCL8, CXCL9, EGF, EGFR, ENG, ERBB3, FAS, FASLG, FGF2, FGF4, FGF6, FGF7, FGF9, FIGF, FLT3LG, FLT4, GDNF, HGF, ICAM1, ICAM2, ICAM3, IFNG, IGF1, IGF1R, IGF2, IGFBP1, IGFBP2, IGFBP3, IGFBP4, IGFBP6, IL10, IL10RB, IL11, IL12A, IL12B, IL13, IL13RA2, IL15, IL16, IL17A, IL18BP, IL18RAP, IL1A, IL1B, IL1R1, IL1R2, IL1RL1, IL1RN, IL2, IL21R, IL2RA, IL2RB, IL2RG, IL3, IL4, IL5, IL5RA, IL6, IL6R, IL6ST, IL7, IL9, INHBA, KDR, KIT, KITLG, LEP, LEPR, LIF, LTA, MIF, MMP1, MMP13, MMP3, MMP9, MST1, NGF, NGFR, NTF3, NTF4, OSM, PDGFA, PDGFB, PDGFRA, PDGFRB, PECAM1, PGF, PLAUR, PPBP, PRL, SELE, SELL, SIGLEC5, TEK, TGFA, TGFB1, TGFB2, TGFB3, THPO, TIE1, TIMP1, TIMP2, TIMP4, TNF, TNFRSF10C, TNFRSF10D, TNFRSF11B, TNFRSF18, TNFRSF1A, TNFRSF1B, TNFRSF21, TNFSF14, TNFSF18, TPO, TYRO3, VEGFA, XCL1 |
| Human Cytokine Array | 42 | ANG, CCL1, CCL15, CCL17, CCL2, CCL22, CCL5, CCL7, CCL8, CSF1|CSF2, CSF3, CXCL1, CXCL12, CXCL2, CXCL3, CXCL5, CXCL8, CXCL9, EGF, IFNG, IGF1, IL10, IL12A, IL13, IL15, IL1A, IL1B, IL2, IL3, IL4, IL5, IL6, IL7, KITLG, LEP, LTA, OSM, PDGFB, TGFB1, THPO, TNF, TPO, VEGFA |
| Human Cytokine Array | 274 | ACE2, ADAM17, ADIPOQ, AFP, AGER, AGRP, ALCAM, ANG, ANGPT1, ANGPT2|ANGPTL4, AREG, AXL, B2M, BCAM, BDNF, BMP4, BMP5, BMP6, BMP7, BTC, CA (19-9), CA9, CALCA, CCL1, CCL11, CCL13, CCL14, CCL15, CCL16, CCL17, CCL18, CCL19, CCL2, CCL20, CCL21, CCL22, CCL23, CCL24, CCL25, CCL26, CCL27, CCL28, CCL3, CCL4, CCL5, CCL7, CCL8, CD14, CD40, CD40LG, CD80, CDH1, CDH5, CEACAM1, CEACAM5, CFD, CGA, CGB, CNTF, CRP, CSF1, CSF1R, CSF2, CSF3, CTF1, CTSS, CX3CL1, CXCL1, CXCL10, CXCL11, CXCL12, CXCL13, CXCL16, CXCL2, CXCL3, CXCL5, CXCL6, CXCL8, CXCL9, DCN, DKK1, DKK3, DKK4, DPP4, EDA, EDA2R, EGF, EGFR, ENG, EPCAM, EPOR, ERBB2, ERBB3, FAS, FASLG, FCER2, FCGR2B, FGF2, FGF4, FGF6, FGF7, FGF9, FIGF, FLT3LG, FLT4, FSHB, FST, FSTL3, FTH1, FURIN, GDF15, GDNF, GH1, HAVCR1, HBEGF, HGF, ICAM1, ICAM2, ICAM3, IFNG, IFNL1, IFNL2, IGF1, IGF1R, IGF2, IGFBP1, IGFBP2, IGFBP3, IGFBP4, IGFBP6, IL10, IL10RA, IL10RB, IL11, IL12A, IL12B, IL13, IL13RA1, IL13RA2, IL15, IL16, IL17A, IL17B, IL17C, IL17F, IL17RA, IL18BP, IL18RAP, IL1A, IL1B, IL1R1, IL1R2, IL1RL1, IL1RN, IL2, IL21R, IL22, IL2RA, IL2RB, IL2RG, IL3, IL31, IL4, IL5, IL5RA, IL6, IL6R, IL6ST, IL7, IL9, INHBA, INS, KDR, KIT, KITLG, KLK3, LEP, LEPR, LGALS7, LHB, LIF, LTA, LYVE1, MICA, MICB, MIF, MMP1, MMP10, MMP13, MMP2, MMP3, MMP7, MMP8, MMP9, MST1, MUC1, MUC16, NCAM1, NGF, NGFR, NID1, NRCAM, NRG1, NTF3, NTF4, OSM, PARN, PDGFA, PDGFB, PDGFRA, PDGFRB, PECAM1, PF4, PGF, PI3, PLAUR, PLG, PPBP, PRL, PROK1, PRSS27, RETN, RPS27A, S100B, SAA1, SCARB2, SELE, SELL, SERPINE1, SHH, SIGLEC5, SIGLEC9, SPP1, TDGF1, TEK, TG, TGFA, TGFB1, TGFB2, TGFB3, TGFBI, THPO, THRB, TIE1, TIMP1, TIMP2, TIMP4, TNF, TNFRSF10B, TNFRSF10C, TNFRSF10D, TNFRSF11A, TNFRSF11B, TNFRSF14, TNFRSF17, TNFRSF18, TNFRSF1A, TNFRSF1B, TNFRSF21, TNFRSF8, TNFRSF9, TNFSF14, TNFSF18, TNFSF9, TPO, TREM1, TSLP, TYRO3, VCAM1, VEGFA, VEGFC, XCL1 |
| Human Cytokine Array | 80 | ANG, BDNF, CCL1, CCL11, CCL13, CCL15, CCL17, CCL18, CCL2, CCL20|CCL22, CCL23, CCL24, CCL26, CCL4, CCL5, CCL7, CCL8, CSF1, CSF2, CSF3, CX3CL1, CXCL1, CXCL10, CXCL12, CXCL13, CXCL2, CXCL3, CXCL5, CXCL6, CXCL8, CXCL9, EGF, FGF4, FGF6, FGF7, FGF9, FLT3LG, GDNF, HGF, IFNG, IGF1, IGFBP1, IGFBP2, IGFBP3, IGFBP4, IL10, IL12A, IL13, IL15, IL16, IL1A, IL1B, IL2, IL3, IL4, IL5, IL6, IL7, KITLG, LEP, LIF, LTA, MIF, NTF3, NTF4, OSM, PDGFB, PGF, PPBP, SPP1, TGFB1, TGFB2, TGFB3, THPO, TIMP1, TIMP2, TNF, TNFRSF11B, TNFSF14, TPO, VEGFA |
| Human Cytokine Array | 36 | BDNF, CCL11, CCL13, CCL18, CCL20, CCL23, CCL24, CCL26, CX3CL1, CXCL10|CXCL13, CXCL6, FGF4, FGF6, FGF7, FGF9, FLT3LG, GDNF, HGF, IGFBP1, IGFBP2, IGFBP3, IGFBP4, IL16, LIF, MIF, NTF3, NTF4, PGF, PPBP, TGFB2, TGFB3, TIMP1, TIMP2, TNFRSF11B, TNFSF14 |
| Human Cytokine Array | 60 | ANG, BDNF, BMP4, BMP6, CCL1, CCL11, CCL13, CCL15, CCL17, CCL18|CCL2, CCL20, CCL22, CCL23, CCL24, CCL26, CCL5, CCL7, CCL8, CNTF, CSF1, CSF2, CX3CL1, CXCL12, CXCL13, CXCL6, CXCL9, EGF, FGF6, FGF7, FLT3LG, GDNF, IFNG, IGF1, IGFBP1, IGFBP2, IGFBP4, IL10, IL13, IL15, IL16, IL1A, IL1B, IL1RN, IL2, IL3, IL4, IL5, IL6, IL7, KITLG, LEP, LTA, NTF3, PDGFB, PPBP, TGFB1, TGFB3, TNF, TNFSF14 |
| Human Cytokine Array | 60 | ADIPOQ, AGRP, ANGPT2, AREG, AXL, BTC, CCL16, CCL19, CCL25, CCL27|CCL28, CCL3, CCL4, CSF3, CXCL1, CXCL11, CXCL2, CXCL3, CXCL5, CXCL8, EGFR, FAS, FGF2, FGF4, FGF9, FIGF, HGF, ICAM1, ICAM3, IGF1R, IGFBP3, IGFBP6, IL11, IL12A, IL12B, IL17A, IL1R1, IL1RL1, IL2RA, IL6R, IL6ST, MIF, MST1, NGF, NTF4, OSM, PGF, PLAUR, THPO, TIMP1, TIMP2, TNFRSF10C, TNFRSF10D, TNFRSF11B, TNFRSF18, TNFRSF1A, TNFRSF1B, TNFSF18, TPO, TYRO3, VEGFA, XCL1 |
| Human Cytokine Array | 51 | ADAM17, AGER, BCAM, CD40, CFD, CGA, EDA2R, FCGR2B, FST, FSTL3|FTH1, FURIN, GDF15, GH1, HAVCR1, IFNL1, IFNL2, IL10RA, IL22, IL31, INS, KLK3, LGALS7, LHB, LYVE1, MICA, MICB, MMP10, MMP2, MMP7, MMP8, NCAM1, NID1, NRCAM, NRG1, PF4, PI3, PRSS27, RETN, SAA1, SCARB2, SERPINE1, SIGLEC9, SPP1, THRB, TNFRSF10B, TNFRSF11A, TNFRSF8, TREM1, TSLP, VCAM1, VEGFC |
| Human Cytokine Array | 54 | ALCAM, BMP5, BMP7, CCL23, CD14, CD80, CDH5, CSF1R, CTF1, CXCL10|CXCL12, CXCL16, ENG, ERBB3, FASLG, FLT4, ICAM2, IGF2, IL10RB, IL13RA2, IL18BP, IL18RAP, IL1R2, IL21R, IL2RB, IL2RG, IL5RA, IL9, INHBA, KDR, KIT, LEPR, LIF, MMP1, MMP13, MMP3, MMP9, NGFR, PDGFA, PDGFB, PDGFRA, PDGFRB, PECAM1, PRL, SELE, SELL, SIGLEC5, TEK, TGFA, TGFB1, TGFB2, TIE1, TIMP4, TNFRSF21 |
| Mouse Cytokine Array | 96 | AXL, CCL1, CCL11, CCL12, CCL17, CCL19, CCL2, CCL20, CCL22, CCL24|CCL25, CCL27, CCL3, CCL5, CCL9, CD40, CSF1, CSF2, CSF2RB, CSF3, CX3CL1, CXCL1, CXCL10, CXCL11, CXCL12, CXCL13, CXCL15, CXCL16, CXCL2, CXCL5, CXCL9, DPP4, FASLG, FCGR2B, FGF2, FIGF, FLT1, FLT3LG, FLT4, ICAM1, IFNG, IGF1, IGF2, IGFBP2, IGFBP3, IGFBP5, IGFBP6, IL10, IL12A, IL13, IL15, IL17A, IL17RB, IL1A, IL1B, IL2, IL3, IL4, IL5, IL6, IL7, IL9, KDR, KITLG, LEP, LEPR, MET, MMP2, MMP3, MMP9, PF4, PPBP, RETN, SELE, SELL, SELP, SHH, SPP1, THPO, TIMP1, TIMP2, TNF, TNFRSF11B, TNFRSF18, TNFRSF19, TNFRSF8, TNFSF11, TNFSF8, TPO, TSLP, TYRO3, VCAM1, VEGFA, XCL1 |
| Mouse Cytokine Array | 22 | CCL12, CCL2, CCL5, CSF2, CSF3, IFNG, IL10, IL12A, IL13, IL17A|IL2, IL3, IL4, IL5, IL6, IL9, KITLG, THPO, TNF, TNFRSF1A, VEGFA |
| Mouse Cytokine Array | 144 | ACE, AGER, AREG, AXL, CCL1, CCL11, CCL12, CCL17, CCL19, CCL2|CCL20, CCL21, CCL22, CCL24, CCL25, CCL27, CCL3, CCL5, CCL9, CD27, CD36, CD40, CD40LG, CD70, CDH1, CHRD, CSF1, CSF2, CSF2RB, CSF3, CTF1, CTLA4, CX3CL1, CXCL1, CXCL10, CXCL11, CXCL12, CXCL13, CXCL15, CXCL16, CXCL2, CXCL5, CXCL9, DCN, DKK1, DPP4, EGF, ENG, EPGN, EREG, F11R, FASLG, FCGR2B, FGF2, FIGF, FLT1, FLT3LG, FLT4, GAS1, GAS6, GZMB, HGF, ICAM1, IFNG, IFNL2, IGF1, IGF2, IGFBP2, IGFBP3, IGFBP5, IGFBP6, IL10, IL11, IL12A, IL13, IL15, IL17A, IL17B, IL17F, IL17RB, IL1A, IL1B, IL1RL1, IL1RN, IL2, IL20, IL21, IL25, IL2RA, IL3, IL4, IL5, IL6, IL6R, IL7, IL9, KDR, KITLG, LEP, LEPR, LGALS1, MADCAM1, MET, MFGE8, MME, MMP2, MMP3, MMP9, PF4, PPBP, PRL, PTX3, RETN, SELE, SELL, SELP, SHH, SLPI, SPINT1, SPP1, THPO, TIMP1, TIMP2, TNF, TNFRSF11B, TNFRSF13B, TNFRSF18, TNFRSF19, TNFRSF8, TNFRSF9, TNFSF11, TNFSF12, TNFSF18, TNFSF8, TNFSF9, TPO, TREM1, TSLP, TYRO3, VCAM1, VEGFA, XCL1 |
| Mouse Cytokine Array | 32 | CCL11, CCL12, CCL17, CCL19, CCL2, CCL20, CCL21, CCL27, CCL3, CCL5|CSF2, CSF3, CXCL1, CXCL2, IFNG, IL10, IL12A, IL13, IL2, IL3, IL4, IL5, IL6, IL9, KITLG, LEP, THPO, TIMP1, TNF, TNFRSF1A, TPO, VEGFA |
| Mouse Cytokine Array | 62 | AXL, CCL1, CCL11, CCL12, CCL17, CCL19, CCL2, CCL20, CCL24, CCL25|CCL27, CCL3, CCL5, CCL9, CD40, CSF1, CSF2, CSF2RB, CSF3, CX3CL1, CXCL1, CXCL10, CXCL12, CXCL13, CXCL16, CXCL2, CXCL5, CXCL9, FASLG, IFNG, IGFBP3, IGFBP5, IGFBP6, IL10, IL12A, IL13, IL17A, IL1A, IL1B, IL2, IL3, IL4, IL5, IL6, IL9, KITLG, LEP, LEPR, PF4, SELL, SELP, THPO, TIMP1, TNF, TNFRSF8, TNFSF8, TPO, VCAM1, VEGFA, XCL1 |
| Mouse Cytokine Array | 34 | CCL22, CXCL11, CXCL15, DPP4, FCGR2B, FGF2, FIGF, FLT1, FLT3LG, FLT4|ICAM1, IGF1, IGF2, IGFBP2, IL15, IL17RB, IL7, KDR, MET, MMP2, MMP3, MMP9, PPBP, RETN, SELE, SHH, SPP1, TIMP2, TNFRSF11B, TNFRSF18, TNFRSF19, TNFSF11, TSLP, TYRO3 |
| Mouse Cytokine Array | 48 | ACE, AGER, AREG, CCL21, CD27, CD36, CD40LG, CD70, CDH1, CHRD|CTF1, CTLA4, DCN, DKK1, EGF, ENG, EPGN, EREG, F11R, GAS1, GAS6, GZMB, HGF, IFNL2, IL11, IL17B, IL17F, IL1RL1, IL1RN, IL20, IL21, IL25, IL2RA, IL6R, LGALS1, MADCAM1, MFGE8, MME, PRL, PTX3, SLPI, SPINT1, TNFRSF13B, TNFRSF9, TNFSF12, TNFSF18, TNFSF9, TREM1 |
| Mouse Cytokine Array | 97 | AREG, AXL, CCL11, CCL17, CCL19, CCL2, CCL20, CCL21, CCL22, CCL24|CCL3, CCL5, CCL9, CD27, CD36, CD70, CDH1, CSF3, CTF1, CTLA4, CX3CL1, CXCL1, CXCL11, CXCL13, CXCL15, CXCL16, CXCL2, CXCL9, DCN, DKK1, EGF, EPGN, F11R, FASLG, FCGR2B, FIGF, FLT1, FLT3LG, FLT4, GAS6, GZMB, HGF, IFNG, IGF2, IGFBP5, IGFBP6, IL10, IL11, IL12A, IL12B, IL13, IL15, IL17A, IL17F, IL17RB, IL1A, IL1B, IL1RN, IL2, IL20, IL21, IL25, IL2RA, IL3, IL4, IL5, IL6, IL9, KITLG, LEP, LEPR, LGALS1, MADCAM1, MFGE8, MMP2, MMP9, PRL, SELE, SELL, SLPI, SPINT1, SPP1, THPO, TNF, TNFRSF11B, TNFRSF13B, TNFRSF18, TNFRSF19, TNFRSF8, TNFSF11, TNFSF12, TNFSF18, TNFSF8, TPO, VCAM1, VEGFA |
| Mouse Cytokine Array | 40 | AHSG, BTC, C5, CCL6, CD48, CD6, CD80, CDH3, CLU, CST3|CXCL15, DLL4, EDAR, ESM1, GPNMB, GRN, H60A, HAVCR1, IFNA11, IGDCC4, IL33, IL7R, KREMEN1, LCN2, MBL2, METRN, NOV, OLR1, PARN, PGF, POSTN, PRSS22, PRSS27, PRSS8, RARRES2, REN1, SPOCK3, TNFRSF13C, TNFSF10, TNFSF4 |
| Rat Cytokine Array | 34 | AGER, AGRN, CCL2, CCL20, CD86, CNTF, CSF2, CX3CL1, CXCL1, CXCL2|CXCL3, CXCL5, FASLG, ICAM1, IFNG, IL10, IL13, IL1A, IL1B, IL1RL2, IL2, IL4, IL6, INHBA, LEP, MMP8, NGF, PDGFA, PPBP, PRLR, SELL, TIMP1, TNF, VEGFA |
| Rat Cytokine Array | 19 | CCL2, CCL20, CNTF, CSF2, CX3CL1, CXCL2, CXCL3, CXCL5, IFNG, IL10, IL1A, IL1B, IL4, IL6, LEP, NGF, TIMP1, TNF, VEGFA |
| Porcine Cytokine Array | 48 | ANGPT1, CCL4, CCL5, CSF2, CXCL8, CXCL9, DCN, EPO, FGF21, IFN-BETA|IFNB, IFNB1, IFNG, IGF2, IGFBP5, IGIF, IL10, IL12A, IL13, IL15, IL17, IL17A, IL17F, IL18, IL1A, IL1B, IL1RN, IL21, IL22, IL28B, IL4, IL6, IL8, INS, INTERFERON-BETA-1, INTERFERON-BETA/POIFN-BETA, IRAP1, KITLG, MGF, MIF, MIP1B, NCAM1, PDGFB, PECAM1, PLGF, SCY4A, SCYA5, TGFB1, TIMP-2, TIMP1, TIMP2, TNF, TNFA, TNFRSF11B, TNFRSF12A, TNFSF2, VEGF, VEGFA |
| Sheep Cytokine Array | 18 | CCL5, DCN, FRZB, IFNG, IL-4, IL13, IL17A, IL1A, IL1B, IL21|IL4, LIF, SPINK5, TNF, TNFA, TNFSF2, VEGF, VEGFA |
| Sheep Cytokine Array | 10 | CXCL8, DCN, FRZB, IFNG, IL17A, IL21, IP-10, TNF, VEGFA |
| Bovine Cytokine Array | 30 | ANGPT1, C1QTNF1, CCL2, CD40LG, CXCL10, CXCL9, DCN, FGF1, FGF2, IFNG|IGF1, IL10, IL13, IL15, IL17A, IL18, IL1A, IL1B, IL2, IL21, IL36RN, IL4, LIF, NCAM1, VEGFA |
| Bovine Cytokine Array | 10 | CCL4, CXCL10, CXCL9, IFNA1, IFNG, IL13, IL1A, IL21, IL36RN, TNF |
| Canine Cytokine Array | 40 | C1QTNF1, CCL2, CCL4, CSF2, CXCL1, CXCL8, DCN, EGFR, EPOR, FGF7|HGF, IFNG, IL10, IL12B, IL17A, IL1B, IL2, IL6, KITLG, LGALS3, MET, PDGFB, TNFRSF1A, VEGFA |
| Dolphin Cytokine Array | 10 | CXCL8, IFNG, IL13, IL1RA, IL1RN, IL2, IL6, IL8, TNF, TNFA|TNFSF2 |
| Equine Cytokine Array | 10 | CCL2, CXCL8, IFNG, IL10, IL1A, IL1RA, IL1RN, IL2, IL4, IL8|MCP1, SCYA2, VEGF, VEGFA |
| Gallus Cytokine Array | 10 | CAR, CCL5, IFNG, IL10, IL12B, IL16, IL21, IL6, NTN2, NTN3|PTX3, TNFAIP5, TSG14 |
| Product Name | No. Targets Per Sample | Analytes |
| Human Growth Factor Array | 41 | AREG, CSF1, CSF1R, CSF2, CSF3, EGF, EGFR, FGF2, FGF4, FGF6|FGF7, FIGF, FLT4, GDNF, HBEGF, HGF, IGF1, IGF1R, IGF2, IGFBP1, IGFBP2, IGFBP3, IGFBP4, IGFBP6, KDR, KIT, KITLG, NGF, NTF3, NTF4, PDGFA, PDGFB, PDGFRA, PDGFRB, PGF, TGFA, TGFB1, TGFB2, TGFB3, VEGFA |
| Mouse Growth Factor Array | 30 | AREG, CSF1, CSF2, CSF3, EGF, EGFR, FGF2, FGF7, FIGF, FLT1|FLT4, HGF, IGF1, IGF1R, IGF2, IGFBP2, IGFBP3, IGFBP5, IGFBP6, IL2, IL7, KDR, KITLG, MET, NGF, PDGFA, PDGFB, PGF, TGFB1, VEGFA |
| Mouse Growth Factor Array | 20 | AREG, CSF1, CSF2, CSF3, EGF, FGF2, FIGF, FLT1, FLT4, HGF|IGF1, IGF2, IGFBP2, IGFBP3, IGFBP5, IGFBP6, IL2, IL7, KITLG, VEGFA |
| Mouse Growth Factor Array | 10 | CSF1, CSF2, CSF3, EGF, FGF2, HGF, IGF1, IGF2, KITLG, VEGFA |
| Rat Growth Factor Array | 14 | BDNF, CSF2, EGF, FGF2, FLT3LG, GDNF, HGF, IGF1, IGFBP5, INHBA|NGF, PDGFA, PDGFB, VEGFA |
| Product Name | No. Targets Per Sample | Analytes |
| Human HSP Array | 9 | DNAJB5, GH1, HMOX1, HSP90AA1, HSPA14, HSPA4, HSPB1, HSPE1, RPS27A |
| Product Name | No. Targets Per Sample | Analytes |
| Human Immune Checkpoint Array | 23 | CD200, CD200R1, CD27, CD274, CD276, CD28, CD40LG, CD70, CD80, CD86|CTLA4, HAVCR1, HAVCR2, ICOS, ICOSLG, LAG3, PDCD1, PDCD1LG2, TNFRSF14, TNFRSF4, TNFRSF9, TNFSF4, VTCN1 |
| Human Immune Checkpoint Array | 11 | CD200R1, CD27, CD28, CD40LG, CTLA4, HAVCR1, HAVCR2, ICOS, LAG3, PDCD1|TNFRSF4 |
| Human Immune Checkpoint Array | 12 | CD200, CD274, CD276, CD70, CD80, CD86, ICOSLG, PDCD1LG2, TNFRSF14, TNFRSF9|TNFSF4, VTCN1 |
| Mouse Immune Checkpoint Array | 11 | CD27, CD40, CD40LG, CD80, CTLA4, FAS, FASLG, LGALS1, LGALS3, TNFRSF9|TNFSF4 |
| Rat Immune Molecule Checkpoint Array | 9 | CD27, CD80, CD86, FAS, FASLG, HAVCR1, LGALS1, LGALS3, TNFRSF9 |
| Product Name | No. Targets Per Sample | Analytes |
| Human Inflammation Array | 20 | CCL1, CCL11, CCL24, CSF2, CSF3, CXCL8, IFNG, IL10, IL11, IL12A|IL13, IL1A, IL1B, IL2, IL3, IL4, IL6, IL7, TIMP2 |
| Human Inflammation Array | 20 | CCL15, CCL2, CCL3, CCL4, CCL5, CCL8, CSF1, CXCL10, CXCL9, ICAM1|IL15, IL16, IL17A, IL6R, LTA, PDGFB, TGFB1, TNF, TNFRSF1A, TNFRSF1B |
| Human Inflammation Array | 40 | CCL1, CCL11, CCL15, CCL2, CCL24, CCL3, CCL4, CCL5, CCL8, CSF1|CSF2, CSF3, CXCL10, CXCL8, CXCL9, ICAM1, IFNG, IL10, IL11, IL12A, IL12B, IL13, IL15, IL16, IL17A, IL1A, IL1B, IL2, IL3, IL4, IL6, IL6R, IL7, LTA, PDGFB, TGFB1, TIMP2, TNF, TNFRSF1A, TNFRSF1B |
| Mouse Inflammation Array | 40 | CCL1, CCL11, CCL2, CCL24, CCL25, CCL3, CCL5, CCL9, CSF1, CSF2|CSF3, CX3CL1, CXCL1, CXCL11, CXCL12, CXCL13, CXCL5, CXCL9, FASLG, IFNG, IL10, IL12A, IL13, IL17A, IL1A, IL1B, IL2, IL3, IL4, IL6, IL9, LEP, TIMP1, TIMP2, TNF, TNFRSF1A, TNFRSF1B, TNFSF8, XCL1 |
| Porcine Inflammation Array | 26 | CCL4, CCL5, CSF2, CXCL8, CXCL9, IFN-BETA, IFNB, IFNB1, IFNG, IGIF|IL10, IL12A, IL13, IL15, IL17, IL17A, IL17F, IL18, IL1A, IL1B, IL1RN, IL21, IL22, IL28B, IL4, IL6, IL8, INTERFERON-BETA-1, INTERFERON-BETA/POIFN-BETA, IRAP1, MIF, MIP1B, SCY4A, SCYA5, TNF, TNFA, TNFSF2 |
| Bovine Inflammation Array | 16 | CCL2, CXCL10, CXCL9, IFNG, IL10, IL13, IL15, IL17A, IL1A, IL1B|IL21, TNF |
| Canine Inflammation Array | 20 | CCL2, CCL4, CSF2, CXCL8, IFNG, IL10, IL12B, IL17A, IL1B, IL6|TNF, TNFRSF1A |
| Product Name | No. Targets Per Sample | Analytes |
| Porcine Interleukin Array | 16 | CXCL8, IGIF, IL10, IL12A, IL13, IL15, IL17, IL17A, IL17F, IL18|IL1A, IL1B, IL1RN, IL21, IL22, IL28B, IL4, IL6, IL8, IRAP1 |
| Bovine Interleukin Array | 11 | IL10, IL13, IL15, IL17A, IL18, IL1A, IL1B, IL2, IL21, IL36RN|IL4 |
| Canine Interleukin Array | 11 | CXCL8, IL10, IL12B, IL17A, IL1B, IL2, IL6 |
| Product Name | No. Targets Per Sample | Analytes |
| Human MMP Array | 10 | MMP1, MMP10, MMP13, MMP2, MMP3, MMP8, MMP9, TIMP1, TIMP2, TIMP4 |
| Product Name | No. Targets Per Sample | Analytes |
| Human Neuro Discovery Array | 20 | BDNF, CCL2, CCL3, CSF3, CXCL8, GDNF, HBEGF, IFNG, IGF1, IL10|IL1A, IL1B, IL6, MMP2, MMP3, NGF, S100B, TGFB1, TNF, VEGFA |
| Human Neuro Discovery Array | 30 | ADIPOQ, BDNF, CCL11, CCL17, CCL2, CCL24, CCL26, CCL4, CNTF, CRP|CSF2, CXCL8, FAS, GDNF, IFNG, IL10, IL18, IL1A, IL1B, IL4, IL6, LIF, MMP2, MMP3, NGF, S100B, TGFB1, TIMP1, TNF, VEGFA |
| Mouse Neuro Discovery Array | 23 | AGER, CCL17, CCL2, CCL3, CSF1, CSF3, CX3CL1, CXCL1, CXCL12, CXCL5|FASLG, IFNG, IGF1, IL10, IL1A, IL1B, IL4, IL6, MMP2, MMP3, TGFB1, TNF, VEGFA |
| Rat Neuro Discovery Array | 19 | BDNF, CCL11, CCL2, CNTF, CSF2, CXCL5, IFNG, IL10, IL1A, IL1B|IL4, IL6, MOK, NGF, NOTCH1, NOTCH2, NRP1, TNF, VEGFA |
| Product Name | No. Targets Per Sample | Analytes |
| Human NF-kB Array | 34 | ASC, BCL10, BIRC2, BIRC3, CD40, CIS4, FADD, FAS, FIP3, IKBB|IKBE, IKBKB, IKBKE, IL17RA, IL18R1, IL1R1, IL1RN, IRAK, IRF5, JNK2, LTBR, LYT10, MYD88, NFKB1, NGFR, REL, TLR2, TMEM173, TNFRSF10A, TNFRSF10B, TNFRSF1A, TNFRSF1B, TP53 |
| Product Name | No. Targets Per Sample | Analytes |
| Human Obesity Array | 62 | ACE2, ADIPOQ, AGRP, ANGPT1, ANGPT2, ANGPTL4, CCL16, CCL18, CCL2, CCL25|CCL4, CCL5, CCL7, CFD, CRP, CSF1, CXCL10, CXCL12, CXCL5, CXCL8, EDA2R, FAS, FGF6, GH1, IFNG, IGF1, IGF1R, IGFBP1, IGFBP2, IGFBP3, IL10, IL11, IL12A, IL1A, IL1B, IL1R1, IL1RL1, IL6, IL6R, INS, LEP, LEPR, LIF, MIF, MST1, OSM, PDGFA, PDGFB, RETN, SAA1, SERPINE1, TGFB1, TIMP1, TIMP2, TNF, TNFRSF11B, TNFRSF1A, TNFRSF1B, TNFRSF9, TNFSF9, VEGFA, XCL1 |
| Product Name | No. Targets Per Sample | Analytes |
| Human Periodontal Disease Array | 20 | CCL3, CRP, CXCL8, GPNMB, IFNG, IL10, IL12A, IL17A, IL1A, IL1B|IL2, IL4, IL6, MMP13, MMP9, SPP1, TGFB1, TNF, TNFRSF11A, TNFRSF11B |
| Product Name | No. Targets Per Sample | Analytes |
| Human/Mouse AKT Pathway Phosphorylation Array | 18 | AKT1, AKT1S1, BAD, CDKN1B, EIF4EBP1, GSK3A, GSK3B, MAPK1, MAPK3, MTOR|PDK1, PRKAA1, PTEN, RAF1, RPS6, RPS6KA1, RPS6KA3, RPS6KB1, TP53 |
| Human Insulin Receptor Pathway Phosphorylation Array | 9 | EIF4E, FOXO3, IGF1R, INPP5D, INS, IRS1, PTPN11, SHC1, STK11 |
| Human/Mouse MAPK Phosphorylation Array | 17 | AKT1, CREB1, GSK3A, GSK3B, HSPB1, MAP2K1, MAP2K3, MAP2K6, MAPK1, MAPK14|MAPK8, MTOR, RPS6KA1, RPS6KA3, RPS6KA4, RPS6KB1, TP53 |
| Human JAK/STAT Pathway Phosphorylation Array | 12 | EGFR, JAK1, JAK2, PTPN11, PTPN6, SRC, STAT1, STAT2, STAT3, STAT5A|STAT6, TYK2 |
| Human NF-kB Pathway Phosphorylation Array | 11 | ATM, EIF2S1, HDAC2, HDAC4, MAP3K7, NFKBIA, RELA, RPS6KA5, STAT1, TBK1|ZAP70 |
| Human EGFR Phosphorylation Array | 16 | EGFR, ERBB2, ERBB3, ERBB4 |
| Human Phosphorylation Pathway Profiling Array | 55 | AKT1, AKT1S1, AMPK1, AND, ATF2, ATM, BAD, CDKN1B, CREB1, EGFR|EIF2S1, EIF4EBP1, FOS, GSK3A, GSK3B, HDAC2, HDAC4, HSPB1, JAK1, JAK2, JUN, MAP2K1, MAP2K3, MAP2K6, MAP3K7, MAPK14, MAPK8, MTOR, NFKBIA, PDPK1, PTEN, PTPN11, PTPN6, RAF1, RELA, RPS6, RPS6KA1, RPS6KA3, RPS6KA4, RPS6KA5, RPS6KB1, SMAD1, SMAD2, SMAD4, SMAD5, SRC, STAT1, STAT2, STAT3, STAT5A, STAT6, TBK1, TP53, TYK2, ZAP70 |
| Human RTK Phosphorylation Array | 71 | ABL1, AXL, BLK, BMX, BTK, CSF1R, CSK, DDR2, EGFR, EPHA1|EPHA2, EPHA3, EPHA4, EPHA5, EPHA6, EPHA7, EPHA8, EPHB1, EPHB2, EPHB3, EPHB4, EPHB6, ERBB2, ERBB3, ERBB4, FER, FGFR1, FGFR2, FGR, FLT4, FRK, FYN, HCK, IGF1R, INSR, ITK, JAK1, JAK2, JAK3, KDR, KIT, LCK, LTK, LYN, MATK, MET, MUSK, NGFR, NTRK2, PDGFRA, PDGFRB, PTK2, PTK2B, RET, ROR1, ROR2, ROS1, RYK, SLPI, SRMS, SYK, TEC, TEK, TIE1, TNK1, TNK2, TXK, TYK2, TYRO3, ZAP70 |
| Human TGF beta Pathway Phosphorylation Array | 8 | ATF2, FOS, JUN, MAP3K7, SMAD1, SMAD2, SMAD4, SMAD5 |
| Product Name | No. Targets Per Sample | Analytes |
| Human Receptor Array | 40 | AGER, ALCAM, CD14, CD40LG, CD80, CEACAM1, EDA2R, ENG, ERBB3, FAS|FLT3LG, HAVCR1, ICAM3, IL10RB, IL17RA, IL1R1, IL1RL1, IL21R, IL2RG, LCN2, LYVE1, MICA, MICB, NRG1, PDGFRB, PECAM1, PI3, PLAUR, SCARB2, SELE, SELL, TNFRSF10C, TNFRSF14, TNFRSF17, TNFRSF18, TNFRSF21, TNFRSF8, TNFRSF9, TNFSF9, TYRO3, VCAM1 |
| Product Name | No. Targets Per Sample | Analytes |
| Human Stem Cell Array | 15 | AFP, BMPR1A, BMPR1B, CD38, CDH1, CGB, GATA4, KDR, NANOG, NES|PDX1, POU5F1, SOX17, SOX2, T |
| Product Name | No. Targets Per Sample | Analytes |
| Human T Cell Response Array | 10 | FNG, IL10, IL12A, IL17A, IL2, IL4, IL5, IL9, TGFB1, TNF |
| Human T Cell Response Array | 20 | IFNG, IL10, IL12A, IL13, IL17A, IL17F, IL18, IL2, IL21, IL22|IL23A, IL27, IL33, IL4, IL5, IL6, IL7, IL9, TGFB1, TNF |
| Porcine T Cell Response Array | 19 | CSF2, IFNG, IL10, IL12A, IL13, IL15, IL17, IL17A, IL17F, IL1A|IL1B, IL1RN, IL21, IL22, IL28B, IL4, IL6, IRAP1, NCAM1, TGFB1, TNF, TNFA, TNFSF2 |
| Bovine T Cell Response Array | 10 | CD40LG, IFNG, IL10, IL13, IL17A, IL1A, IL1B, IL21, NCAM1, TNF |
| Canine T Cell Response Array | 13 | CSF2, IFNG, IL10, IL12B, IL17A, IL1B, IL6, TNF |
| Product Name | No. Targets Per Sample | Analytes |
| Human TGF-beta Array | 25 | ACVR1, BAMBI, BMP15, BMP2, BMP4, BMP6, BMP7, BMP8A, BMPR1A, BMPR2|FST, GDF11, GDF15, GDF2, INHBA, LEFTY2, MADH3, NOG, SMAD4, TGFA, TGFB1, TGFB2, TGFBI, TGFBR2, TGFBR3 |
| Product Name | No. Targets Per Sample | Analytes |
| Human Th1/Th2/Th17 Array | 34 | CCL20, CD40, CD40LG, CSF2, CSF3, IFNG, IFNL2, IL10, IL12A, IL12B|IL13, IL17A, IL17F, IL17RA, IL1B, IL1R1, IL1R2, IL2, IL21, IL21R, IL22, IL23A, IL4, IL5, IL6, IL6R, IL6ST, LTA, TGFB1, TGFB3, TNF, TNFRSF18, TNFRSF8, TNFSF11 |
| Product Name | No. Targets Per Sample | Analytes |
| Human AKI Array | 20 | ALB, B2M, CALB1, CCL2, CLU, CST3, CXCL10, CXCL16, FABP1, GPNMB|HAVCR1, HGF, LCN2, MIF, SPP1, TFF3, TIMP1, TNFRSF1A, VCAM1, VEGFA |
| Rat AKI Array | 7 | CCL2, CST3, FABP1, HAVCR1, LCN2, TIMP1, VEGFA |
| Product Name | No. Targets Per Sample | Analytes |
| Human Angiogenesis Array | 43 | ANG, ANGPT1, ANGPT2, CCL1, CCL13, CCL2, CCL5, CCL7, COL18A1, CSF2|CSF3, CXCL1, CXCL11, CXCL2, CXCL3, CXCL5, CXCL8, EGF, FGF2, FIGF, FLT4, IFNG, IGF1, IL10, IL1A, IL1B, IL2, IL4, IL6, KDR, LEP, MMP1, MMP9, PDGFB, PECAM1, PGF, PLAUR, PLG, TEK, TGFB1, THPO, TIMP1, TIMP2, TNF, TPO, VEGFA |
| Human Angiogenesis Array | 20 | ANG, CCL2, CCL5, CXCL1, CXCL2, CXCL3, CXCL5, CXCL8, EGF, FGF2|FIGF, IFNG, IGF1, IL6, LEP, PDGFB, PGF, TGFB1, THPO, TIMP1, TIMP2, TPO, VEGFA |
| Human Angiogenesis Array | 23 | ANGPT1, ANGPT2, CCL1, CCL13, CCL7, COL18A1, CSF2, CSF3, CXCL11, FLT4|IL10, IL1A, IL1B, IL2, IL4, KDR, MMP1, MMP9, PECAM1, PLAUR, PLG, TEK, TNF |
| Mouse Angiogenesis Array | 24 | CCL11, CCL2, CSF1, CSF2, CSF3, CXCL9, FASLG, FGF2, IFNG, IGF2|IL12A, IL13, IL1A, IL1B, IL6, IL9, LEP, PF4, THPO, TIMP1, TIMP2, TNF, TPO |
| Product Name | No. Targets Per Sample | Analytes |
| Human Apoptosis Array | 43 | BAD, BAX, BCL2, BCL2L11, BCL2L2, BID, BIRC3, BIRC5, BIRC7, CASP3|CASP8, CD40, CD40LG, CDKN1A, CYCS, DIABLO, FAS, FASLG, HSPA14, HSPA4, HSPB1, HTRA2, IGF1, IGF1R, IGF2, IGFBP1, IGFBP2, IGFBP3, IGFBP4, IGFBP5, IGFBP6, LTA, SSSCA1, TNF, TNFRSF10A, TNFRSF10B, TNFRSF10C, TNFRSF10D, TNFRSF1A, TNFRSF1B, TNFRSF21, TP53, XIAP |
| Human Apoptosis Signaling Array | 19 | AKT1, ATM, BAD, CASP3, CASP7, CHEK1, CHEK2, EIF2A, HSPB1, MAP3K7|MAPK1, MAPK3, MAPK8, NFKBIA, PARP1, PSMD9, RELA, SMAD2, TP53 |
| Mouse Apoptosis Array | 38 | BAD, BAX, BCL2, BCL2L11, BCL2L2, BID, BIRC3, BIRC5, CASP3, CASP8|CD40, CD40LG, CDKN1A, DIABLO, FAS, FASLG, HSPA4, HSPB1, HSPD1, HTRA2, IGF1, IGF2, IGFBP1, IGFBP2, IGFBP3, IGFBP4, IGFBP5, IGFBP6, LTA, PER27, TNF, TNFRSF10B, TNFRSF1A, TNFRSF1B, TNFRSF21, TP53, XIAP |
| Mouse Apoptosis Signaling Array | 17 | AKT1, ATM, BAD, CASP3, CASP7, CHEK1, CHEK2, EIF2A, HSPB1, MAP3K7|MAPK1, MAPK3, MAPK8, NFKBIA, PARP1, PSMD9, RELA, SMAD2, TP53 |
| Product Name | No. Targets Per Sample | Analytes |
| Human Atherosclerosis Array | 20 | CCL11, CCL2, CCL20, CCL5, CSF1, CSF2, CSF3, GDNF, ICAM1, IFNG|IL1A, IL1B, IL1R1, IL1R2, LTA, PDGFB, TGFB1, TGFB2, TGFB3, TNF |
| Mouse Atherosclerosis Array | 22 | CCL11, CCL2, CCL20, CCL5, CD40, CSF1, CSF2, CSF3, FGF2, IFNG|IL13, IL1A, IL1B, IL2, IL3, IL4, IL5, IL6, SELL, SELP, TNF, VEGFA |
