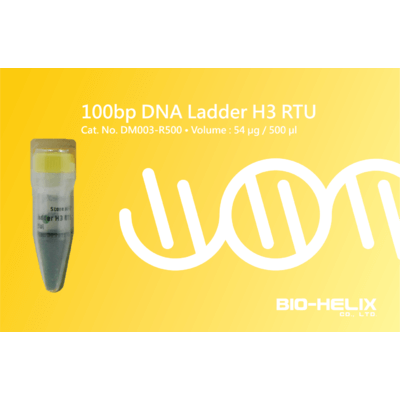

100bp DNA Ladder H3 RTU | 貨號BIO-HELIX – DM003-R500

產品描述：DNA分子量標準液 (貨號DM003-R500; 分子量: 100-3,000 bp)，可在進行瓊脂糖凝膠電泳時，作為DNA大小的分子量標準依據。DNA分子量標準液，是PCR產物和許多專有質粒的獨特組合，經適當的限制酶消化產生12個片段 (100bp、200bp、300bp、400bp、500bp、600bp、700bp、800bp、900bp、1000bp、1500bp、3000bp)， DNA包括100-3,000個鹼基對的片段。其中 500bp和1,500bp具較強度作為參考點。 提供每個條帶中DNA的近似質量（0.54μg載荷），用於近似相似大小的相對強烈樣品中DNA的質量。 範圍 100-3,000 bp。片段Number of bands : 12。濃度Concentration : 108 μg / ml。包裝Package : 54μg / 500μl。

Note: BIO-HELIX / DNA Marker / DNA Standard
Categories: DNA Marker/Ladder

建議使用量 Recommended Load : 5 μl / well ( **Containing orange G & xylene cyanol FF as tracking dyes. ) 標準液生產方式； PCR products and double-stranded DNA digested with appropriate restriction enzymes are phenol extracted and equilibrated to 10 mM Tris-HCl (pH 8.0) and 10mM EDTA.



Figure 1. Agarose gel electrophoresis of DNA ladders. This is a storage test for the DNA ladder samples of different lot. numbers which were stored at -20°C specifically since 2016, 2017, 2018, 2019 and 2021 till the test date. As the photo presented, the oldest and latest produced DNA ladder are still functioning the same despite the long storage period. The photo proves the shelf life of this product is as the protocol claimed.

  100bp-3kd DNA Ladder (12片段)    | 100bp-1.5kb DNA Ladder (11片段)   | 250bp-10kb DNA Ladder (13片段) | 100bp-10kb DNA Ladder(19片段) | 50bp-1.5kb DNA Ladder (17片段)  | 250bp-25kb DNA Ladder  (14片段)  | 100-10kd DNA Ladder (13片段)
